APEX DESIGNS - Precision Pressure Gauge (PPG)

The Precision Pressure Gauge provides precise pressure read outs every time with accuracy you can count on.

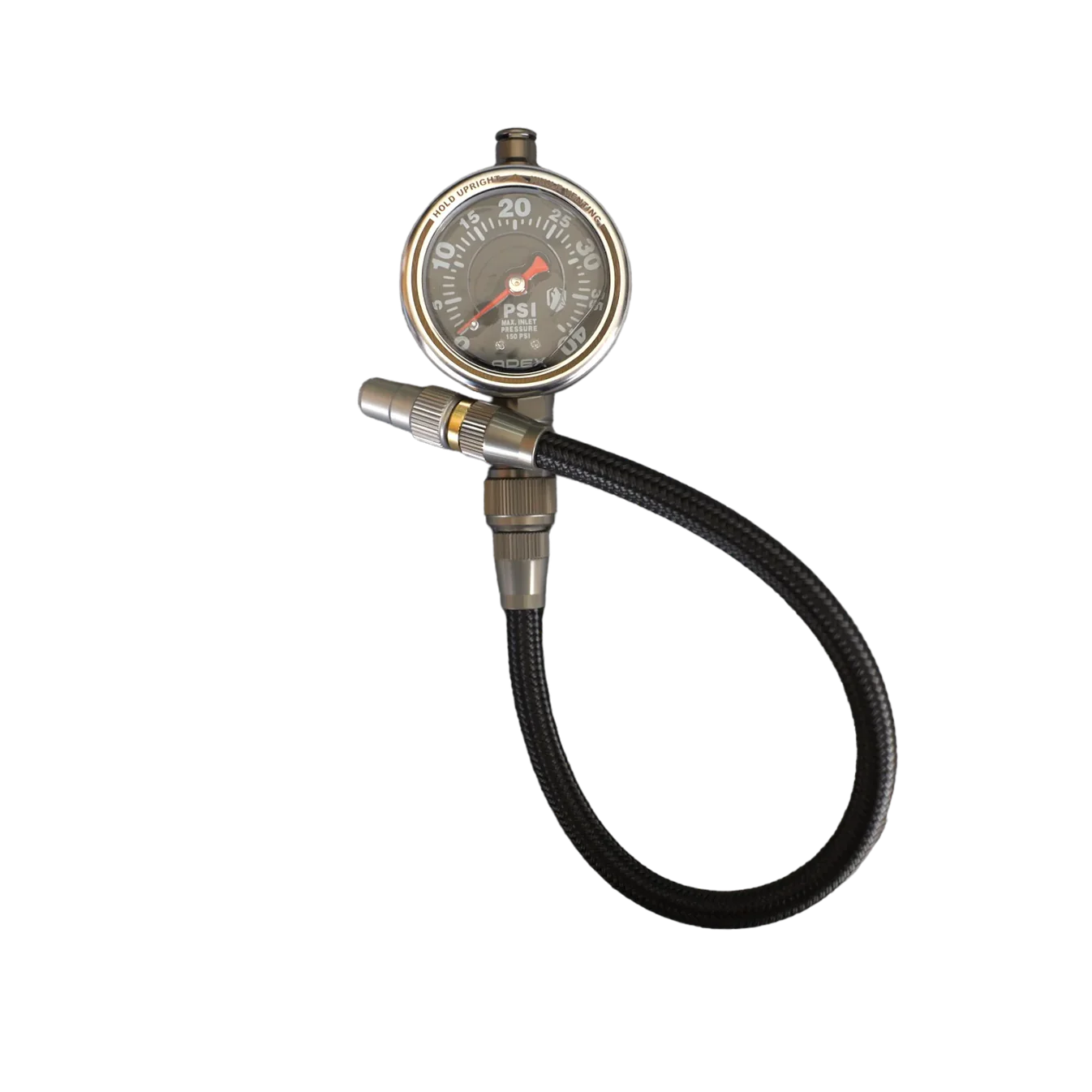

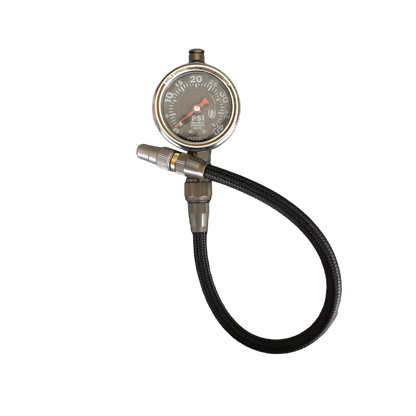

0-40PSI gauge - Designed with accuracy in mind for lower off-road pressures. This gauge is optimised to be extremely accurate between 0 and 40PSI. It offers a large gauge face that is very legible for fine-tuning off-road pressures. Best used with C and D load range tires.

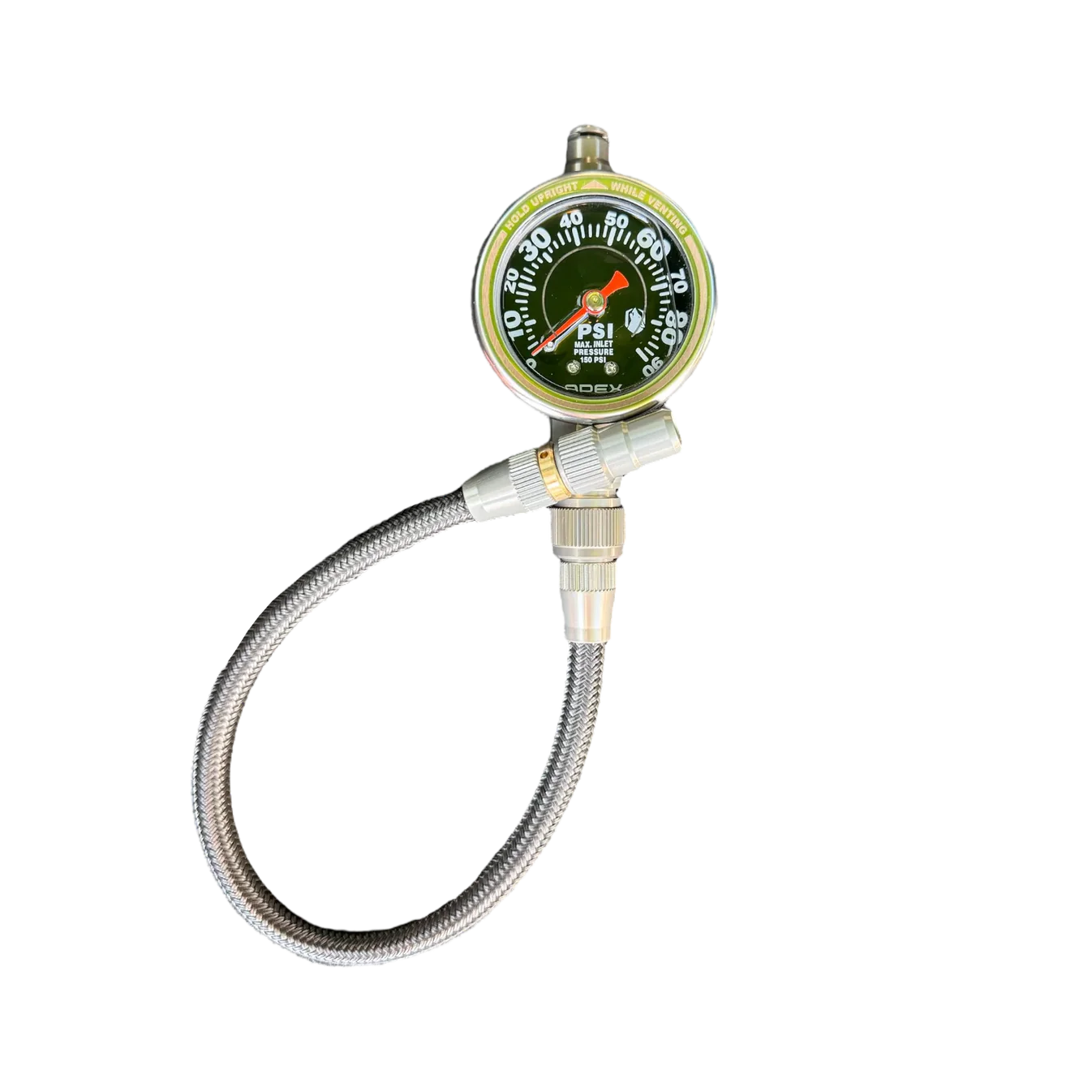

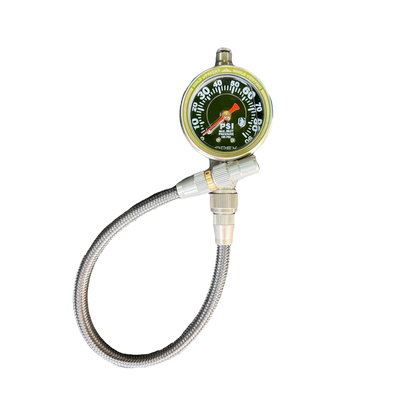

0-90PSI gauge - This is the gauge you want for American Trucks and trailers that run their tyres higher than 40psi. Best used with D and E load range tires.

PERFORMANCE:

• +/- .5PSI accuracy and .05 PSI repeatability
• -30 to 175F use range

ADD ONS:

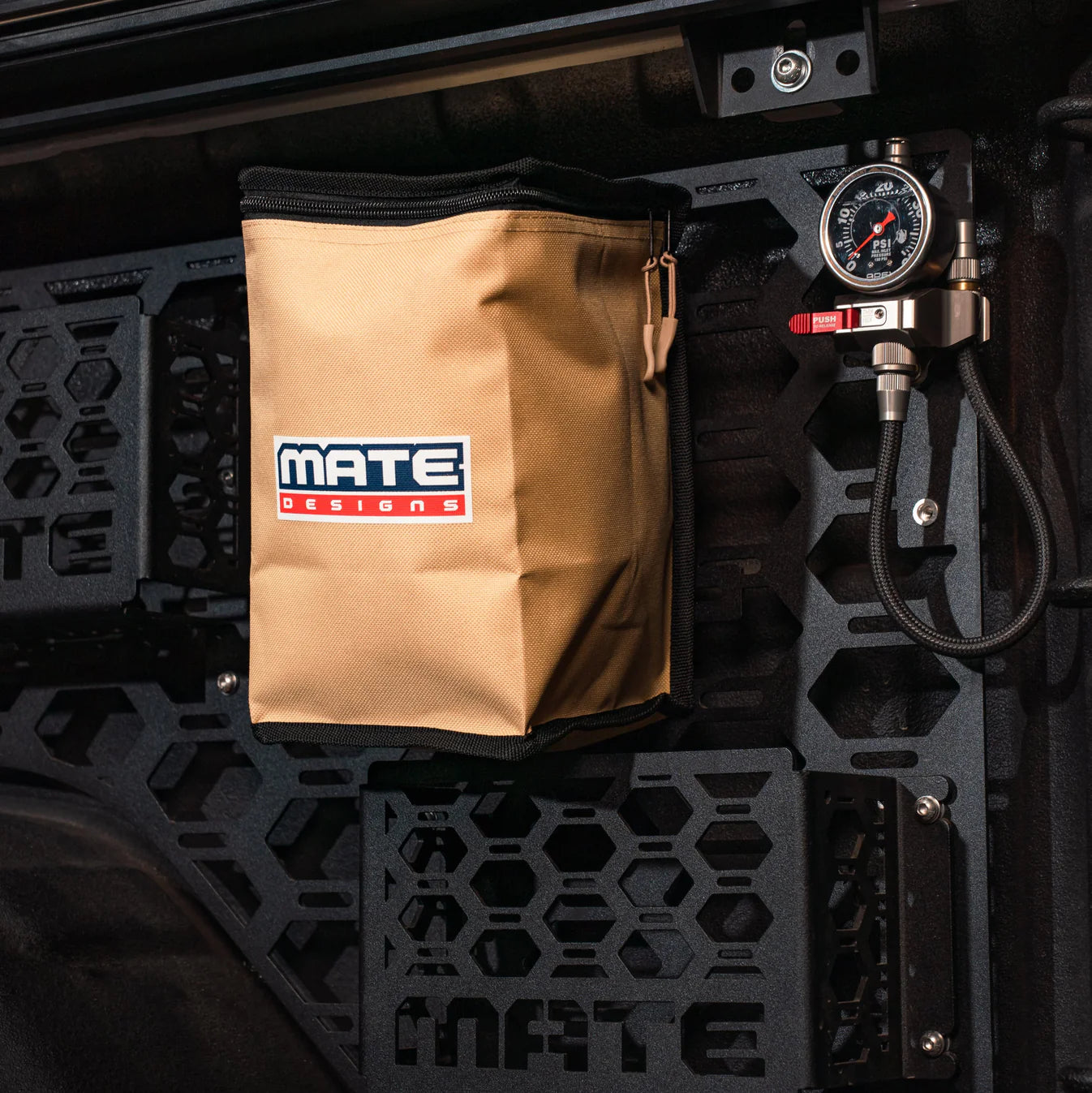

• Get the PPG Snap Mount to conveniently mount the PPG in your vehicle.


Signature Features

• Fluid filled to resist shock and vibration typical in off-road use
• Stainless Steel Construction
• Hard coated 6061-T6 Aluminium
• Numbers and needles are phosphorescent (glow in the dark)
• Swivel joint
• Atmospheric vent to equalise pressure & compensate for elevation change

• Hose may be trimmed shorter or lengthened by purchasing longer hose. (sold separately)
• May use 1/4 NPT fitting for use with other chucks.
• Thread on chuck for ease of use with our Rapid Precision and Rapid Connect Valves - uses metal seal that will not wear out
