• Hard anodised cylinder bores for reduced friction
• Teflon impregnated carbon fibre piston seals for maximum trouble free life
• Anodised mounting bracket dissipates motor heat and allows compressor to be repositioned 180 degrees
ARB Air Locker Activation Compressor
ARB Air Locker Activation Compressor
Regular price
$312.79 NZD
Regular price
Sale price
$312.79 NZD
Unit price
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability

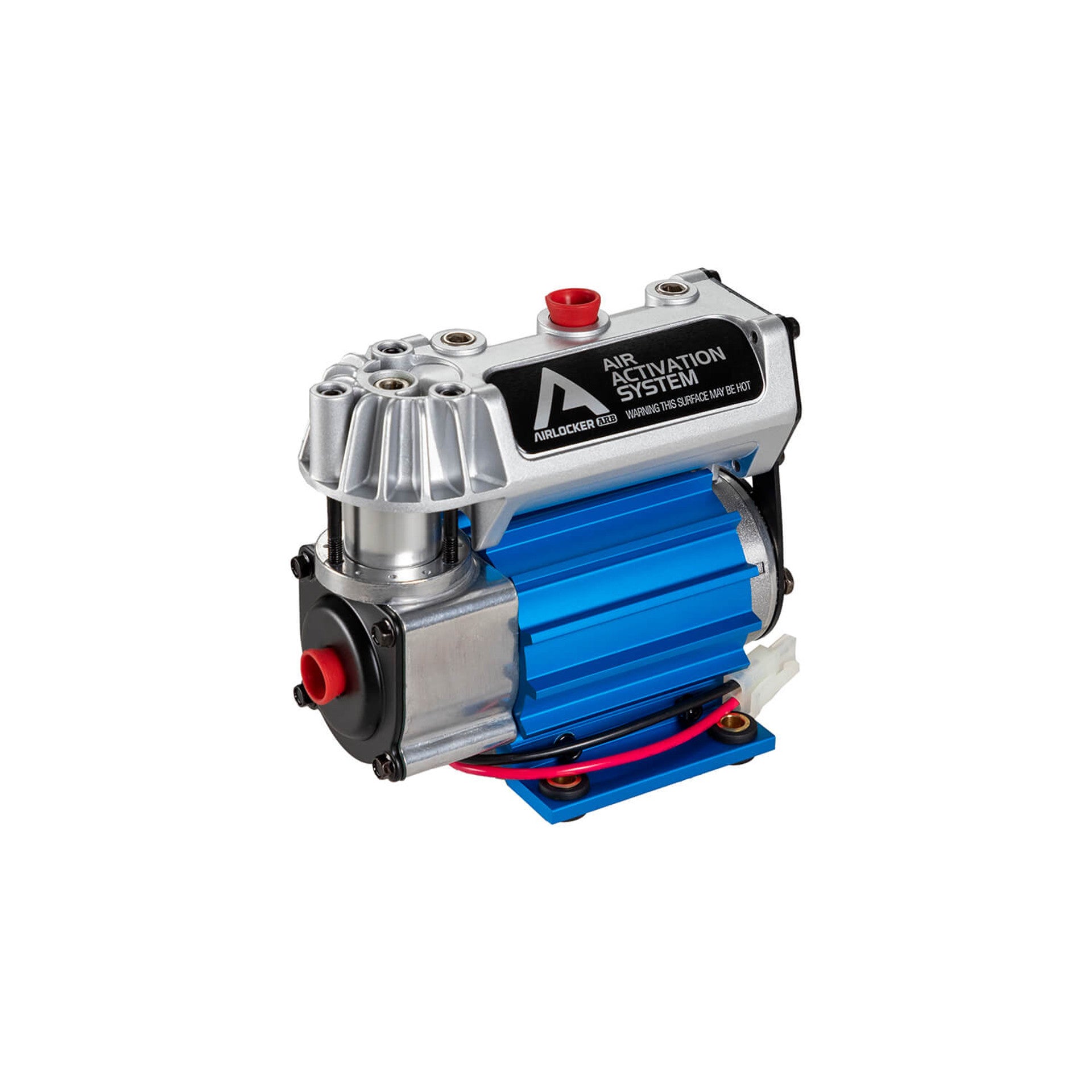

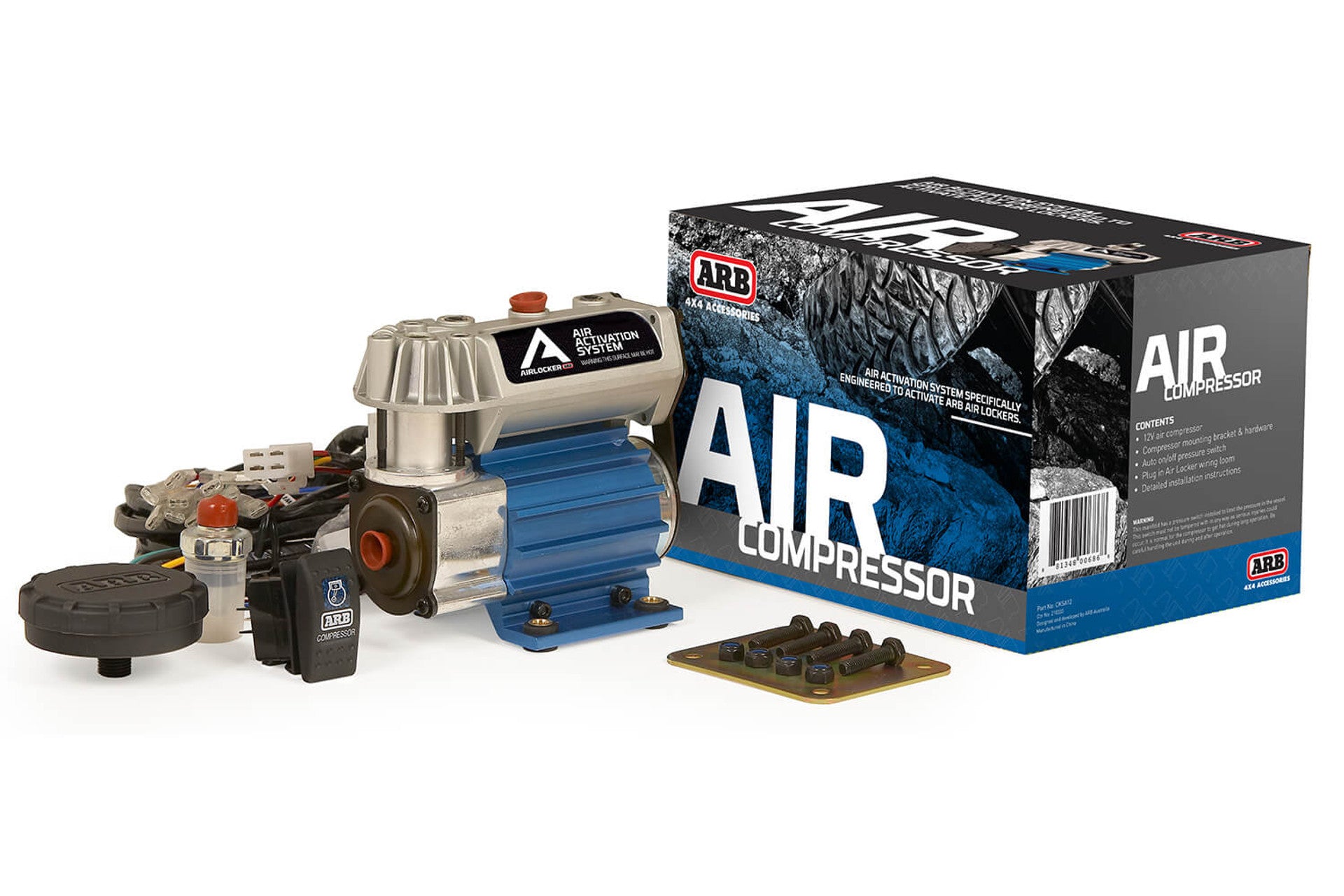

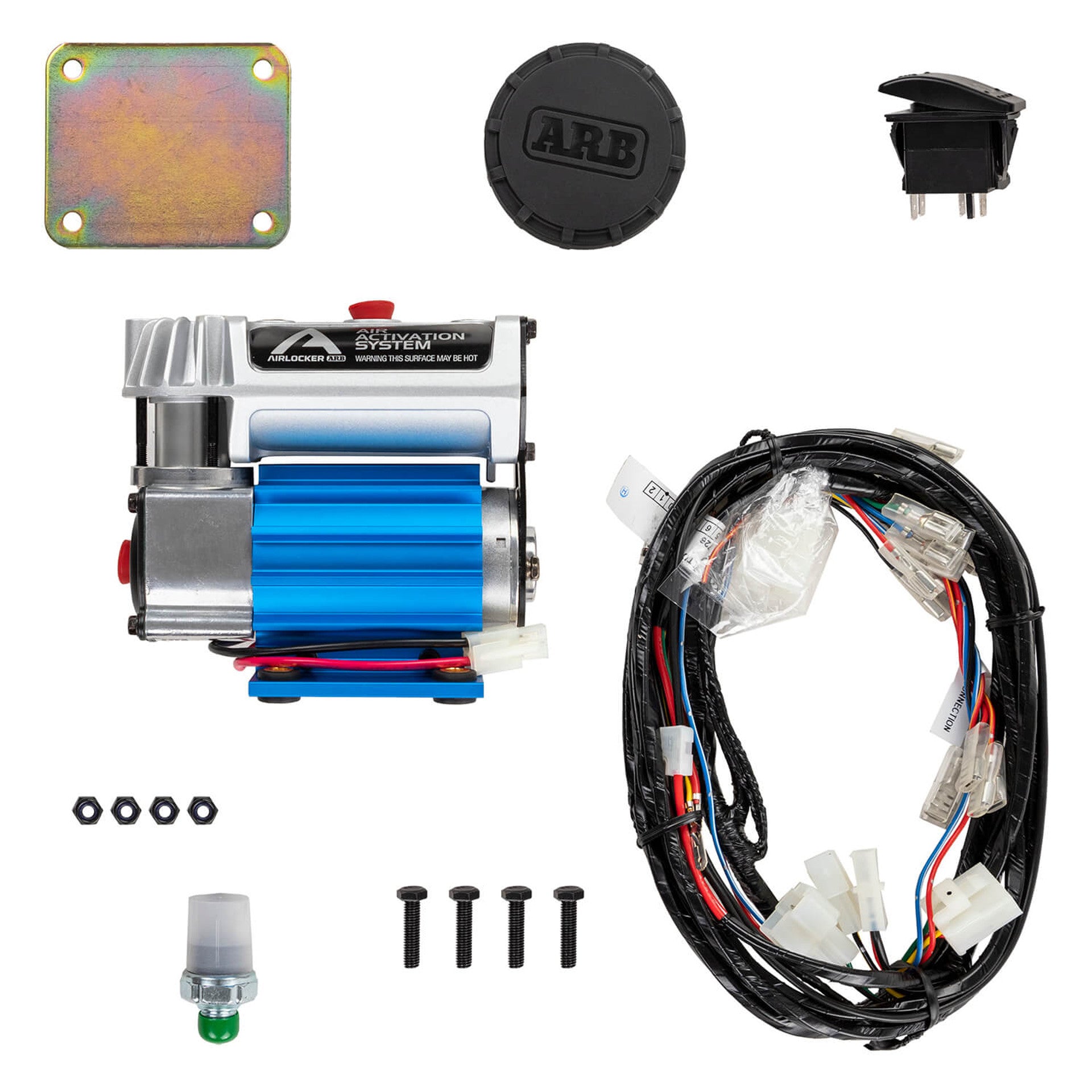

Designed specifically for Air Locker activation and sealed for moisture and dust resistance, this compact on-board compressor comes with a full wiring loom for simplified installation and plug-in connectivity to Air Locker control solenoids.
Despite being compact in size, the Air Locker Activation System is built from quality components for quiet operation and extra long life and is suitable for running on the 12V accessory supply for most 12V vehicles due to its low current draw.
Features & Benefits
-
• Constructed entirely of lightweight, high strength engineering grade materials
• Relocatable air filter assembly for cleaner, cooler air supply and versatile waterproof air intake positioning
Specifications
| Volts | 12v |
|
Width |
89mm |
|
Height |
122mm |
|
Length |
163mm |
| Weight | 1.5kg |
| Max PSI | 100 |
| Max Amps | 9 |
| IP Rating | IP55 |
| Duty Cycle | 35% 21/39 |
| Air Flow 0PSI | 27.7L/min |
| Air Flow 29PSI | 19.8L/min |
| Design | Onboard |
| Warranty | 3 Year |
