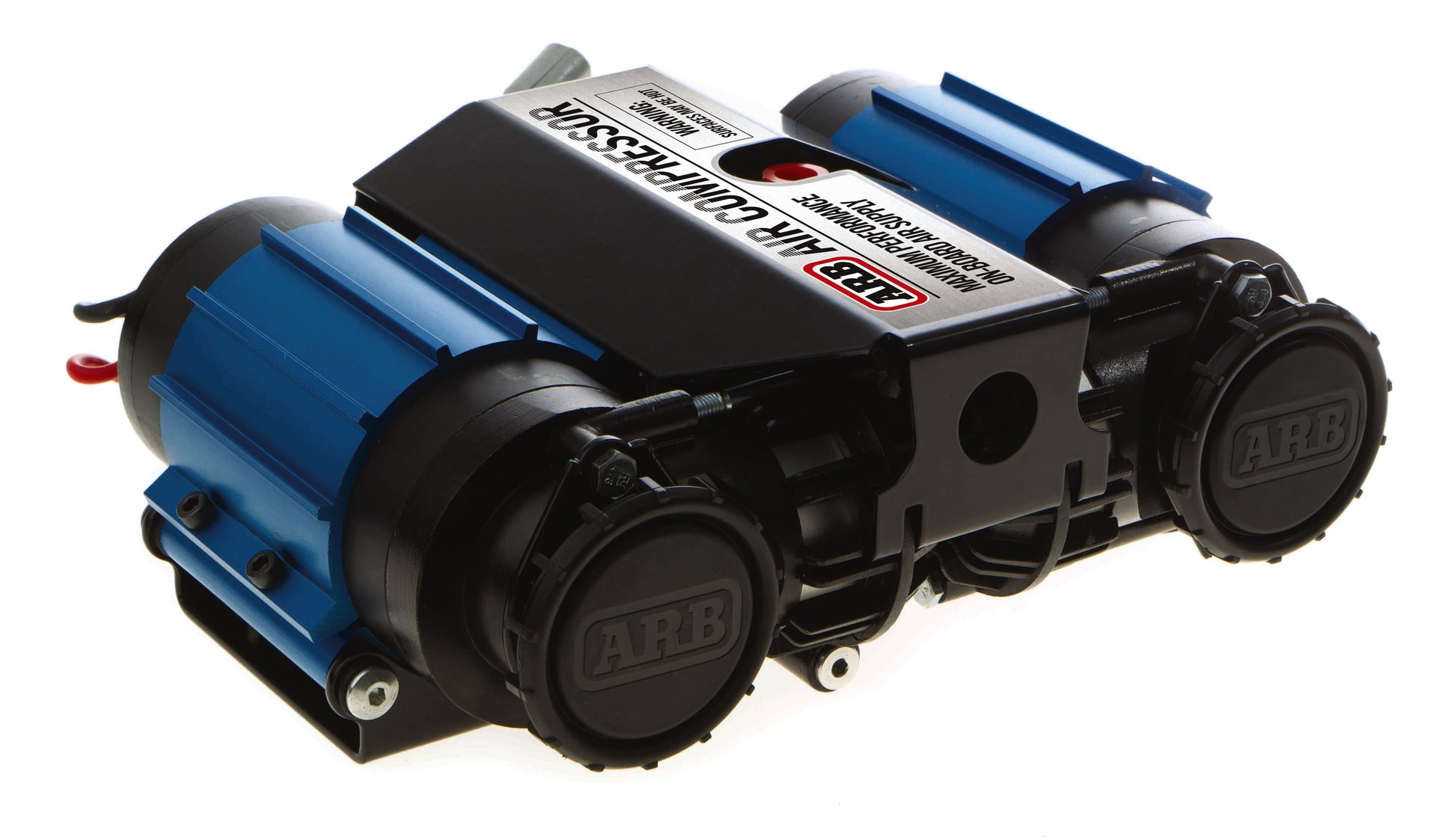

ARB Twin Motor Onboard Air Compressor
ARB Twin Motor Onboard Air Compressor
Regular price
$922.17 NZD
Regular price
Sale price
$922.17 NZD
Unit price
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability

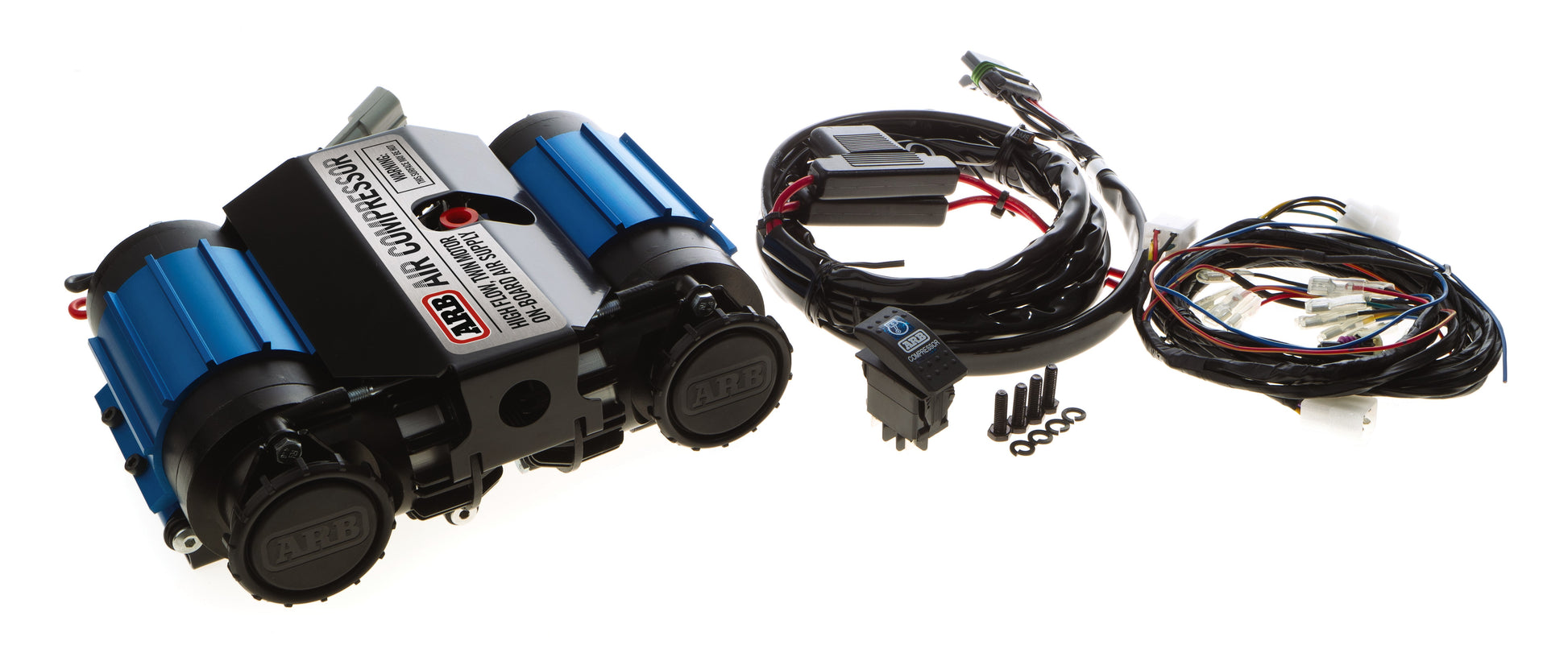

ARBs CKMTA12 and CKMTA24 twin on-board compressor kits were designed to fill the market need for a compact sized yet high-volume compressed air source to suit the high volume airflow needs of most air powered tools, and also to suit the actuation and control needs of the ARB Air Locker and the demanding environment of the ARB Air Locker user.
Note: 24v Compressor is suitable for 24v vehicles only
Note: 24v Compressor is suitable for 24v vehicles only
Features & Benefits
- Designed for inflating Tyres and Air Locker activation when used in conjunction with optional accessories
- On-board model available in either a 12V or 24V configuration
- Suitable for many air tools when used in conjunction with a 4L air tank (optional with on-board models)
- 100% duty cycle
- Sealed for moisture and dust resistance
- Hard anodised cylinder bores for reduced friction
- Teflon impregnated carbon fibre piston seals for maximum trouble free life
- Anodised mounting bracket dissipates heat
- Integrated pressure switch, relays and IP55 (waterproof/dustproof) brushless fan cools electronics, motors and cylinder heads
- Over-pressure safety valve equipped
Specifications
| Specifications | 12v | 24v |
|---|---|---|
| Volts | 12v | 24v |
| Width | 190mm | 190mm |
| Height | 116mm | 116mm |
| Length | 275mm | 275mm |
| Weight | 7.9kg | 7.9kg |
| Max PSI | 150 | 150 |
| Max Amps | 68.6 | 34.3 |
| IP Rating | IP55 | IP55 |
| Duty Cycle | 100% 60/0 | 100% 60/0 |
| Air Flow 0PSI | 174L/min | 174L/min |
| Air Flow 29PSI | 132.5L/min | 132.5L/min |
| Design | Onboard | Onboard |
| Warranty | 3 Year | 3 Year |
