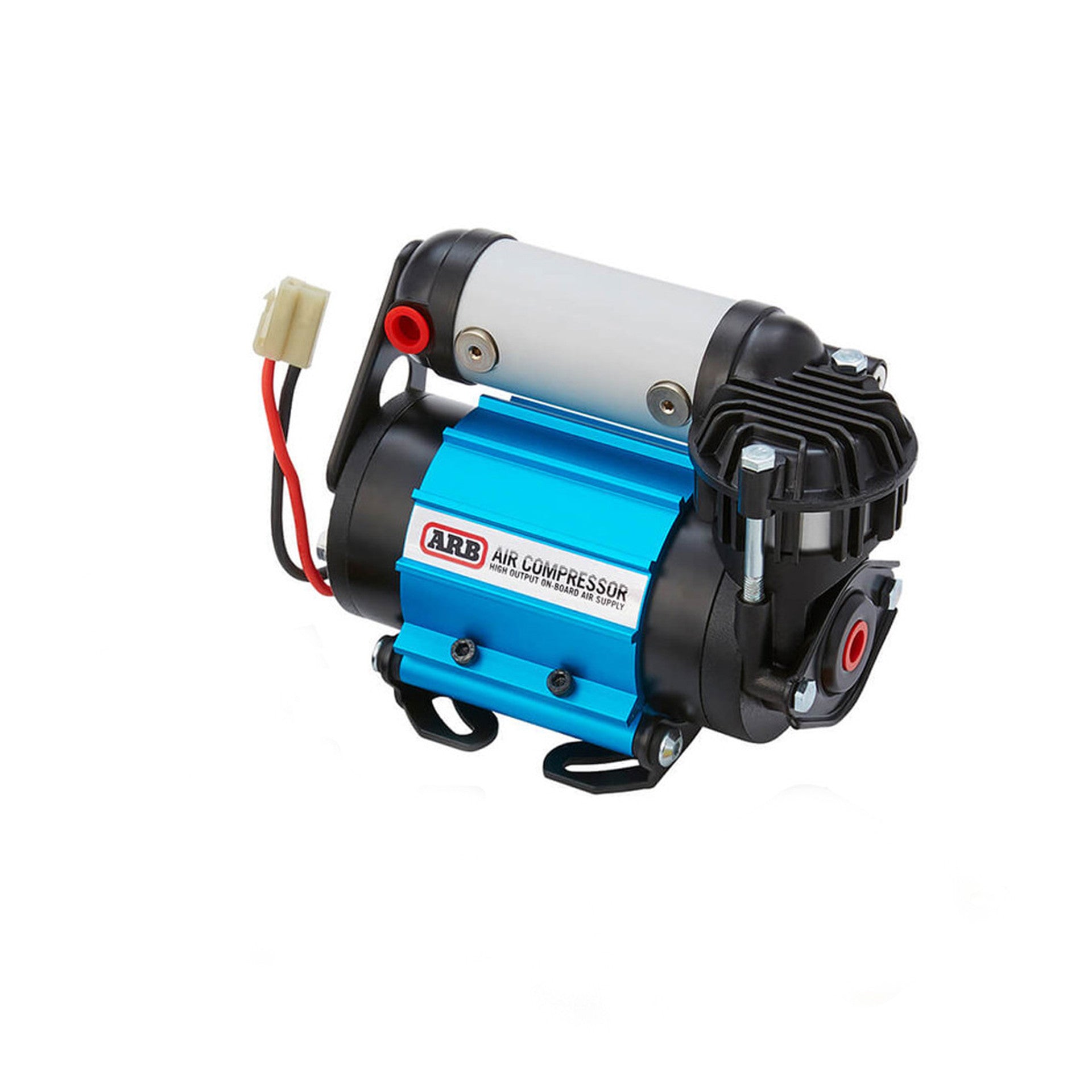

ARB Single Motor Onboard Air Compressor

$497.03 NZD

Sale Sold out

Taxes included. Shipping calculated at checkout.

VOLTAGE 12v 24v

Quantity

Few 4x4 accessories offer as many advantages to off-roaders as readily available on-board air. Considered by 4x4 owners around the world to be a staple accessory for off road travel, an ARB 4x4 Air Compressor provides an immediate source of compressed air anywhere a 12 or 24 volt power source is available.

When coupled with good quality tyre repair equipment, an ARB air compressor provides the off road traveler with independence and peace of mind. ARB 4x4 Air Compressors are individually leak tested, current draw tested and flow tested under load at the factory before packaging and come with a comprehensive 2 year warranty.

Note: 24v Compressor is suitable for 24v vehicles only

Features & Benefits

Sealed for moisture and dust resistance
On-board model available in either a 12V or 24V configuration
Hard-anodised cylinder bore for reduced friction
Teflon-impregnated carbon fibre piston seal for maximum trouble-free life
Anodised mounting bracket dissipates motor heat and allows compressor to be repositioned 180 degrees on vehicle mounted models
Quality components for quiet operation and extra long life
Constructed entirely of lightweight, high strength engineering grade materials
Over-pressure safety valve equipped
Motor is internally thermal protected against extreme temperature damage
Heavy duty maxi-fuse equipped for professional in-line circuit protection

Specifications

Specifications	12v	24v
Volts	12v	24v
Width	98mm	98mm
Height	145mm	145mm
Length	190.5mm	190.5mm
Weight	3.5kg	3.5kg
Max PSI	100	100
Max Amps	32	18
IP Rating	IP55	IP55
Duty Cycle	50% 30/30	50% 30/30
Air Flow 0PSI	87L/min	87L/min
Air Flow 29PSI	66L/min	66L/min
Design	Onboard	Onboard
Warranty	3 Year	3 Year
